Working area: 1300*2500*100
X,Y,Z axis transmission: Japan made ball screw
Motor: JGD spindle
Power of spindle: 2.2 KW
CE: ISO 9001:2008.
Product Description:
1: Lathe casting iron frame .
2: High accuracy and High speed.
3: ISO 9001 :2008.

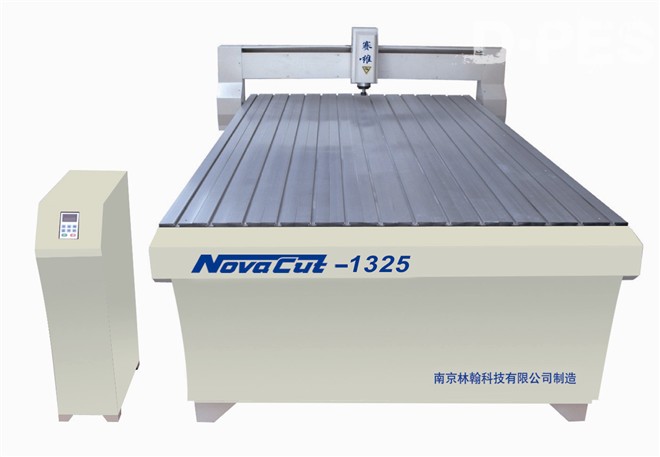

Three-axis Ball Screw CNC SW-1325 Advertising Engraving Machine
1: Whole casting iron frame , to ensure the structure stability , low inertia and no distortion.
2: Japan made dual screw-nut anti-gap rod, high accuracy , low noise, long life.
3:Equipped with high-speed frequency conversion water cooling2.2KWspindle , high-performance division drive can meet the long time continuous work.
4:Optional to increase stainless steel sink on the table , suitable for engraving hard materials :such as glass , marble
Data -SW-1325Advertising Engraving Machine
| Name |
parameter |
unit |
| model |
SW-1325(1200*1200*100) |
|
| Resolution Rate |
0.003 |
MM |
| Power of spindle |
1500 |
W |
| Max rotating speed of spindle |
24000 |
RPM |
| Cutter diameter |
|
MM |
| Max travel speed |
13 |
M/Min |
| Max engraving size |
1300*2500*100 |
MM |
| Machine size |
1750*3000*1250 |
MM |
| Voltage |
220V 50Hz |
V/Hz |
| Net weight |
1000 |
KG |
| Total consumption |
1.6 |
KW |
| Packing size |
down:3.15*1.87*0.52up:0.68*1.87*0.48 |
M |
Components Display :
Applications & Samples perform:
This machine is suitable for badge making ,architectural models,acrylic cutting ,and woodcarving etc...
Three-axis Ball Screw CNC SW-1325Advertising Engraving Machine
