Machine parameter:

1: Processing range:             1300*2500mm

2:Processing material:     Iron, Aluminum, Zinc Plating Board , white steel Board,

Titanium

3: Processing thickness :          0.0-15mm

4: Cutting speed:                0-8000mm/Min

5: Power:                      8500W

6: Input voltage:                3-Phase 380V 50Hz

7: Plasma current:               60 or 100A

8: File transfer mode:            USB interface

9: ARC Mode:                           non-contact ARC

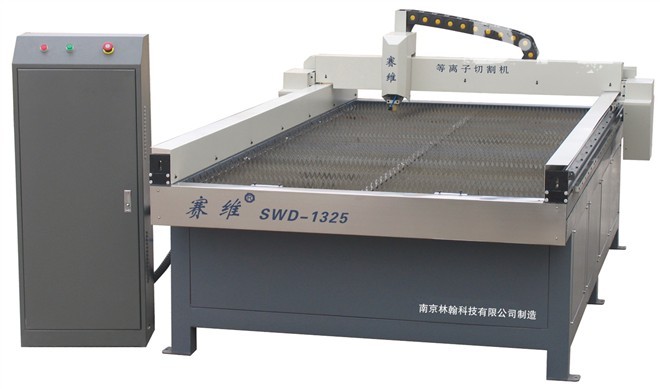

 SW-1325E Plasma cutting machine functions and applications

1: The light structure beam to ensure the good rigidity , light weight and low inertia.

2: Gantry type structure, Y axis adopts dual synchronous motors and dual drives and circle guide for XYZ axis (optional squeal linear guide ) to ensure steady transmission, high precision.

3: For advertising solid light, groove metal panels and the metal bottom panel for cutting, accuracy cutting and good indicator. If equipped with the U.S Treasure plasma power can achieve lower limitation of the laser cutting machine .

4: Small cutting incision , clear , no dregs, avoiding the secondary finishing process .

5: Suitable for iron and aluminum plates, Zinc plating, white iron plates, titanium plates and other metal plates processing.

6: High-NC System configuration, automatic ARC , stable, performance .

7: Support Wentai, Beihang Haier, ARTCAM, Type3, software such as the standard G code path files also could be read by software conversion software such as AUTOCAD, DXF format. U disk exchange control system processing files , easy to operate.

8: Plasma power and the cutting torch are supply by domestic well-known brands manufacturer.

9: OEM is available as customer’s requirements for the machine size and system.
