Machine parameter:
1: X, Y working area: 1300*2500mm
2: Z working area: 100mm
3: Power of spindle motor: 3000W
4: Max travel speed: 25M/Min
5: Resolution rate: 0.003mm
6: Reposition accuracy: 0.02mm/300mm
7: Cutter diameter: ∅3.175mm/∅6mm
8: Drive mode: Step
9: Command: G code/.u00/.mm g/.n c
10: Surroundings for software: windows 98/2000/XP
11: Working voltage: 380 V 50Hz
12: Machine Size: 1750*3000*1250mm
13: Net weight: 1300KGS

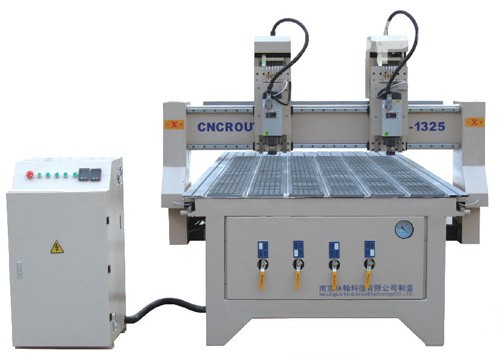

SW-1325 D woodworking engraving machine features:
1: The whole thick square welded tube frame with high- temperature artificial aging treatment to ensure strong , durable , without any deformation .
2: Y axis is adopted two-motor drives and high-precision gears , rack drive to ensure high power , smooth operation .
3: Equipped with Italian high-power spindle motor , and high performance division system.
4:Electrcal wood made outstanding super strong table , vacuum adsorption power and can strong adsorb of different sizes materials .
5:Intelligent protection working table , prevent wrong operating , or software errors from damaging the surface .
6: Intelligent protection for working table that could prevent misuse or software errors from damaging the surface . its protection of step beyond the boundary avoids crashing while design area beyond processing area .
7:Latest control system , automatic completion of Multi-level 3D processing .it can process 3-Dprocessing , carving cutting fastly and smoothly . office operation can be realized.
8:Applicable industry : woodworking industry ,board industry ,and other industries :building model, wood model aviation , propeller , car foam mold violin. Erhu and other three-dimensional surface instruments ,also apply to copper , aluminum, iron , sculptures in the cutting.
