Machine parameter:

1: X, Y working area:                      1200*1200mm

2: Z working area:                         100mm

3: Power of spindle motor:                  800W

4: Max travel speed:                       11M/Min

5: Resolution rate:                         0.003mm

6: Reposition accuracy:                     0.02mm/300mm

7: Cutter diameter:                        ∅3.175mm/∅6mm

8: Drive mode:                            Step

9: Command:                             G code/.u00/.mm g/.n c

10: Surroundings for software:               windows 98/2000/XP

11: Working voltage:                       220 V 50Hz

12: Machine Size:                          1700*1700*1250mm

13: Net weight:                             650KGS

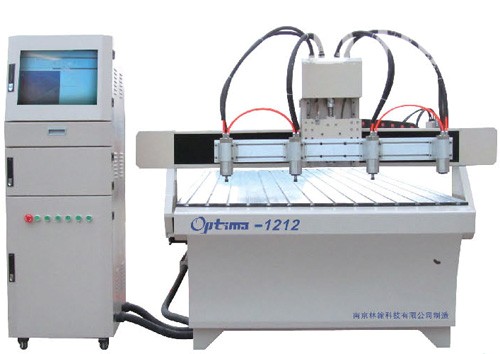

 SW-1212 D Woodworking Engraving Machine Features:

1:Taiwan made high- precision ball screw , to ensure to minimize the gap during moving and more precise positioning accuracy .

2: Taiwan made guide rails (round , square) to make the equal force from all direction to ensure the accuracy and mechanical strength during working .

3: Gantry moving type , whole casting iron frame ensure the strong , long life without distortion .

4: The function of breakpoint memory to ensure continue processing in the accident or the next day .

6:Multiple head could work simultaneously , also one head could be used alone , more efficiency economical and practical than single head machine .

7:Can also keep other head aside , to process the large size work piece with one head.

8:Open software interface , can be accessed by a variety of 3D engraving software , compatible with carved software .

9:Machine software regularly upgraded to ensure the machine continuously improve performance ,.

10: OEM is available as customer’s requirements for machine size and system.
