Machine parameter:
1: X, Y working area: 1300*2500mm
2: Z working area: 200mm
3: Power of spindle motor: 3000W
4: Max spindle rotating speed: 24000RPM
5: Max travel speed: 42M/Min
6: Max engraving speed: 35M/Min
7: Resolution rate: 0.03mm
8: Reposition accuracy: 0.03mm
9: Vacuum adsorption area : 4 area
10: Vacuum adsorption power : 5500W( option7500W)
11: Cutter diameter: ∅3.175mm/∅6mm/∅12.7mm
12: Drive mode: Step
13: Command: G code/.u00/.mm g/.n c
14: Surroundings for software: windows 98/2000/XP
15: Working voltage: 380V 50Hz
16: Machine Size: 1900*3100*1800mm
17: Net weight: 1300KGS
18: Total consumption: 3500W

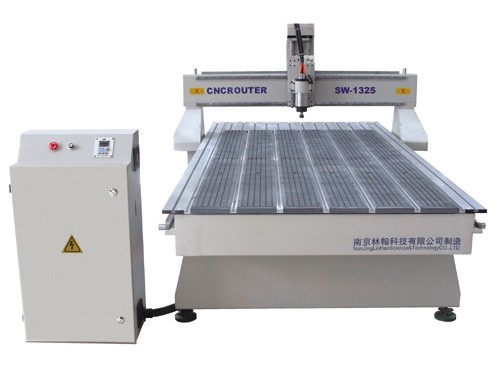

SW-1325 B woodworking engraving machine features:
1: The whole thick square welded tube frame with high- temperature artificial aging treatment to ensure strong , durable , without any deformation .
2: Y axis is adopted two-motor drives and high-precision gears , rack drive to ensure high power , smooth operation .
3: Powerful vacuum system to ensure the processing dust-proof
4: Super vacuum adsorption system to ensure efficiency in processing .
5: Just a touch of the automatic lubrication system. Easy to complete regular maintenance .
6: The highest speed , the idling speed is up to 42m/min or more , in the production of wave plate engraving is up to 20 meters above .
7: The breakpoint memory , power outages continue carving , processing time and other functions , to ensure the situation In the next day to continue processing.
8:Applied to different materials , such as copper , aluminum , iron sculptures in the cutting , but also demonstrated in the woodworking industry performance .
9:OEM is available as customer’s requirements for machine size and system .
