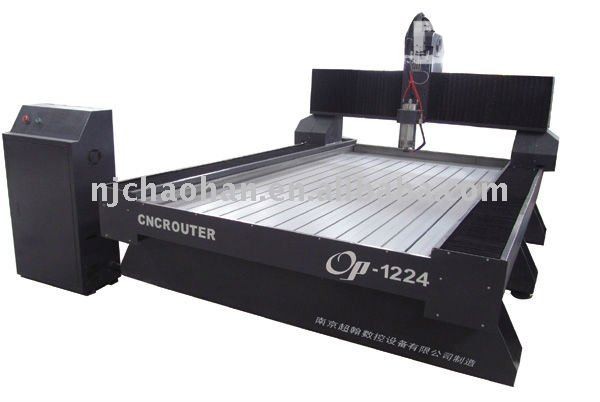

Product Name:Chaohan SW-1224 Marble cutting machine

Product Details:
Model:
SW-1224Marble Engraving Mchine
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Nanjing /Shanghai
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
10 Set/Sets
Delivery Time:
Packaging:
Wooden Case / Wooden Carton

Detailed Product Description:

Machine Parameter:

1:X,Y Processing range :  1200*2400mm

2:Max Engraving depth :  150mm

3:Max Engraving speed:  3000mm/Min

4:Resolution        :   <0.05mm/300m

5:Carving command  :   G code

6:Spindle power     :   3000Wwater cooling (Option4500W)

7:Cutter Shank diameter: 3.175mm/6mm/2.7mm

8:XYZ axis guide     :   Square linear guide

9:Transmission      :   high precision rack and gear

10:Transmission Z-axis  :  ball screw guide driver

SW-1244 Marble Engraving Machine Features:

1: The whole thick square tube welded frame, with high-temperature artificial aging treatment to ensure strong ,durable, without any deformation.

2: Y axis adopts two- motor drive ,select matching , to ensure smooth movement.

3: High accurate rack and pinion drive to ensure high precision ,high speed ,great strength.

4: Taiwan made Hiwin linear square guide rails, high precision and high redundancy bearing ,long life .

5:All excellent mechanical and electrical design ,selection of a variety of electrical accessories , to minimize the failure rate .

6: Equipped with a sink and automatic water cooling system.

7: Dust &water proof design ,full protection machinery transmission parts .

8: Applicants: nature marble, granite, artificial stone , tombstone, milestones , ceramic tile, glass and other materials, and line three-dimensional relief carving ,cutting, back side, drill two-dimensional sculpture.
