Machine parameter:

1:X,Y working area:                1300*2500mm

2:ZWorking area :                  230mm

3:power of air cooling spindle motor:  8000W

4:Spindle rotating speed :            6000-24000RPM

5:Max travel speed:                 60M/Min

6:Max engraving speed:             35M/Min

7:Resolution rate:                  <0.05/300mm vacuum adsorption

8:Cutter diameter:                 ∅2.0mm-∅20.0mm

9:Tool box and number:                 Disk type with 8 tools

10:Drive mode :                       servo

11:Y transmission type:                 high precision rack and pinion

12:X,Ztransmission type:                Taiwan made ball screw

13:X,Y,Zguide rails :                    Hi win square linear guiding rail

14:Controlling system                  Taiwan controlling system

15:Surroundings for software:           windows98/2000/XP

16:Working voltage :                   AC380V 50Hz

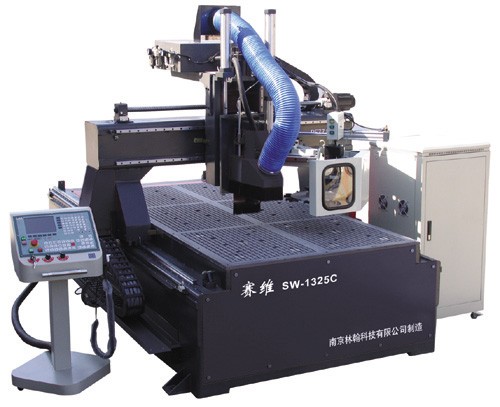

SW-1325C Woodworking Engraving Machine Features:

1:The whole thick welded tube frame with high-temperature artificial aging treatment to ensure strong, durable, without any deformation.

2:The key structure are made with precision parts and components .Adopted Japan made Panasonic high-torque servo motor to ensure the stability ,high speed, high precision position with low noise.

3:Italian HSD air-cooling spindle, high precision, long life, smooth operation ,reliable processing time .Adopted the imported tool storeroom, fast changing tool optionally, special tool checking table ,which could compensate tool length accurately.

4:Dual-chamber-type adsorption working table made with high strength steel milling plate, has a very high adsorption capacity.

5:Taiwan made operating system , separate controlling keyboard ,colorful LCD screen and more powerful .

6:Powerful dust-proof system .

7:Automatic lubrication system .Easy to complete regular maintenance.

8:Optional imported Germany horizontal transforming connector , to achieve side processing.
