Machine parameter:

1: X, Y working area:                     1300*2500mm

2: Z working area:                         200mm

3: Power of spindle motor:                  3000W

4: Max spindle rotating speed:               24000RPM

5:Max engraving speed:                    35M/Min

6: Resolution rate:                         0.03mm

7: Reposition accuracy:                     0.03mm

8:Cutter diameter:                         ∅3.175mm/∅6mm∅12.7mm

9: Drive mode:                           Step

10: Command:                            G code/.u00/.mm g/.n c

11: Working voltage:                       380V 50Hz

12: Machine Size:                          1900*3100*1800mm

13: Net weight:                            1300KGS

14: Total consumption:                      3500W

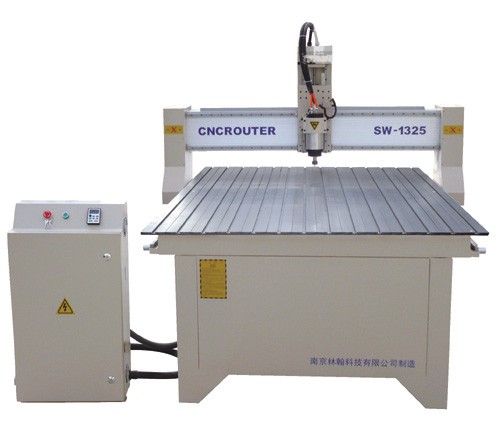

SW-1325A Wood working Engraving Machine Features:

1: The whole thick square welded tube frame with high- temperature artificial aging treatment to ensure strong , durable , without any deformation .

2: Y axis is adopted with two-motor drives to ensure smooth working .

3: Transmission device adopted high classis rack , high precision and big loading.

4: Excellent mechanical and electrical design , with excellent accessories to minimize the failure rate .

5: Adopted with high power spindle motor to ensure the powerful working .

6: The breakpoint memory , power outages continued carving , processing time forecasting time and other functions to ensure the situation in the next day to continue processing .

7:Applied to different material , such as various wood product , advertising signs , acrylic cutting , plastic molding and large-scale cutting , and can be carved iron , copper , aluminum , plastic , wood , or other non-metallic materials .

8: OEM is available as customer’s requirements for machine size and system.
