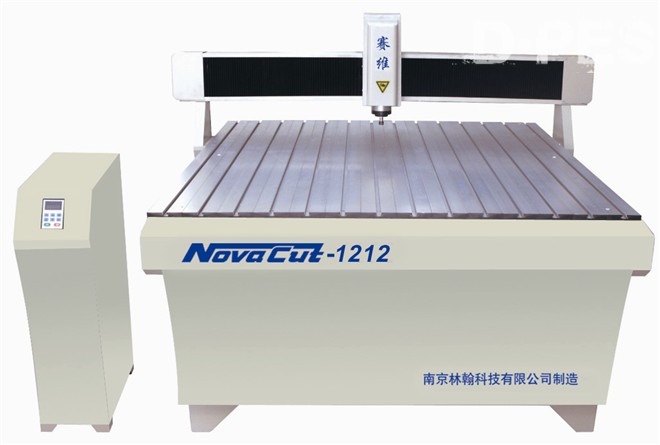

Product Name:Three-axis Ball Screw CNC SW-1212 Advertising Engraving Machine

Product Details:
Model:
Chaohan SW-1212 Engraving Machine(Industrial Machine)
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Nanjing /Shanghai
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
10 Set/Sets
Delivery Time:
Packaging:
Wooden Case /Wooden Carton

Detailed Product Description:

Working area:                               1200*1200*100

 X,Y,Z axis transmission:                Japan made ball screw

 Motor:                                           JGD spindle

 Power of spindle:                            1.5 KW

 CE:                                                ISO 9001:2008.



Product Description:

1: Lathe casting iron frame .

2: High accuracy and High speed.

3: ISO 9001 :2008.



Three-axis Ball Screw CNC SW-1212 Advertising Engraving Machine



1: Whole casting iron frame , to ensure the structure stability , low inertia and no distortion.

2: Japan made dual screw-nut anti-gap rod, high accuracy , low noise, long life.

3:Equipped with high-speed frequency conversion water cooling spindle , high-performance division drive can meet the long time continuous work.

4:Optional to increase stainless steel sink on the table , suitable for engraving hard materials :such as glass , marble



Data -SW-1212Advertising Engraving Machine



    Name  parameter  unit
 model  SW-1212(1200*1200*100)
 Resolution Rate  0.003  MM
 Power of spindle  1500  W
 Max rotating  speed of spindle  24000  RPM
 Cutter diameter
  •  3.175   / 6
 MM
 Max travel speed  13  M/Min
 Max engraving size  1200*1200*100  MM
 Machine size  1700*1700*1250  MM
 Voltage  220V 50Hz  V/Hz
 Net weight  650  KG
 Total consumption  1.6  KW
 Packing size   down:1.8*1.84*0.86up:0.67*1.84*0.49  M



Components Display :

High speed frequency conversion water cooling spindle                                                     Round Guidrail

Applications & Samples perform:

This machine is suitable for badge making ,architectural models,acrylic cutting ,and woodcarving etc...

Embossed Products                    Ads SignsAds Signs                Ads BillboardAds Signs
