Machine Parameter:

1: Size W / D / H (mm) :                            3200*2100*2000

2: Power :                                        10KW

3: Voltage :                                       AC380V+_0%

4: Weight :                                        2600KGS

5: Thickness can absorb pressure :                     3mm-340mm

6: Softening temperature box Room temperature -        - 400℃ controllable.

7: Plastic vacuum :                                  0—0.097Mpa

8: Processing table size :                             3000mm*2000mm

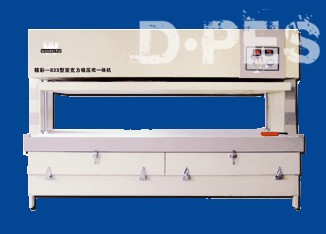

 LH-3000 Blister Machine Features:

1:First adopting the electrical lifting control system to ensure replace the previous hydraulic lifting device to ensure safety  , stability , no errors .

2: Set suction , pressure , wind blowing , heating 4 functions in 1 , which saves work space and it can meet a variety of special processing technology.

3:Soften box adopted with a star connection style , it is long life , saving power , with computer regularly remind function .

4: The unique automatic temperature control system can set different temperatures based on different plates .

5:Soften box adopted with the sub-heating method , sub-use energy , save electricity as 50%.

6: Tow working platforms , upper pressure and under pressure are all available , which saves time and energy.

7: Platform made with imported sheet , strong heat resistance , while suitable for use in winter and low temperature area , defective rate is 0.

8: Working pressure up to 8 tons to 12 tons , to ensure the operation more convenience and fast .

9 : Powerful vacuum system is powerful , the max negative pressure up to the physical vacuum -0.097Mpa , no suction vacuum stage can have negative pressure in the ideal state , easy to use.

10: Machine is digital controlled operation without voltage waves effective .

11:Adjustable vacuum flow , computer reminder time is adjustable , adjustable pressure , heating temperature fine-tuning and other functions.
