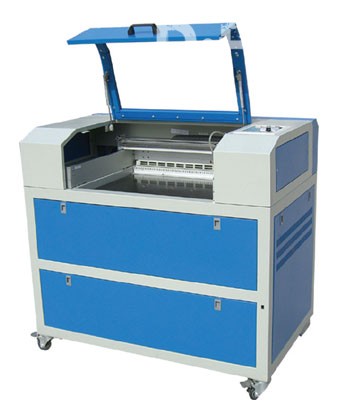

Product Name:Chaohan LH-7050 Laser printing machine

Product Details:
Model:
LH-7050 Laser Machine
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Nanjing /Shanghai
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
10 Set/Sets
Delivery Time:
Packaging:
Wooden Case /Wooden Carton

Detailed Product Description:

Machine Parameter:

1: Laser medium :                             CO2

2: Laser power:                               40W

3: Efficient working area:                      700*500mm

4: Max carving speed :                         70M/Min

5: Max engraving size :                        English character 0.6mm

6: Max cutting thickness :                      d”10mm (Acylic)

7:Min line width :                             0.1mm

8: Re-position accuracy :                       d’’ 0.025mm

9: Support file format :                        PLT , BMP , DXF , AL etc

10: Controlling system :                        Original laser software

11 : Cooling way :                             circulation water cooling

12: Power supply :                             220V/ 50Hz

13: Total Consumption :                        700W

14: Machine Size :                             1580*1240*970

 LH-7050 Laser engraving &cutting Machine Quality Model Features:

1: European style appearance , equipped with automatic lifts to meet the processing needs of different thickness objects .

2: High strength , high stability of the mechanical structure design , smooth numerical control processing , free of adjusting.

3: Dual guiding rail to ensure high precision , durability , minimal character 0.8mm , smooth cutting surface .

4: Perfect patented design for dustproof , greatly improves the stability of machine performance .

5: Important golden plating silicon lens , laser spot is high precision , more cutting efficacy .

6:First using air suction , adsorption and air blowing system , greatly improves the carving , cutting efficacy .

7:Equipped with water cooling system , to ensure continuous operation and stable performance .

8: Applying for : advertisement sign industry , craft industry , building models , clothing leather , offset printing .
