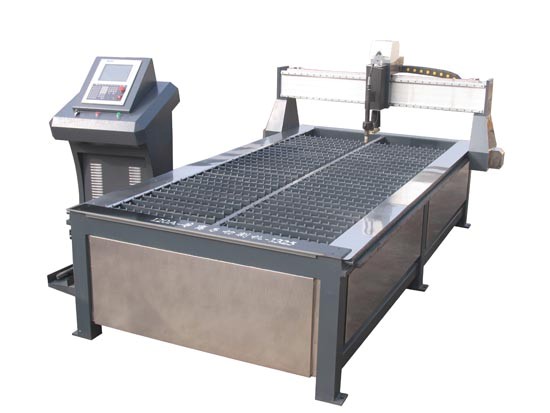

Product Name:Chaohan SW -1325 PLasma cutting machine

Product Details:
Model:
SW-1325 Plasma CNC Cutting Machine (Industrial Type)
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Nanjing /Shanghai
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
10 Set/Sets
Delivery Time:
Packaging:
Wooden Case /Wooden Carton

Detailed Product Description:

Machine parameter:

1: Processing range:             1300*2500mm

2:Processing material:    Iron, Aluminum, Zinc Plating Board , white steel Board,

Titanium

3: Processing thickness :   (40A) 0.5-10mm (100A) 3-20mm (200A) 3-25mm

4: Cutting speed:                0-8m/Min

5:Idling speed:               0-50M/Min

5: Power:                      0.8KW-10.5KW

6: Input voltage:                3-Phase 380V

7:Power frequency:              50Hz

8: File transfer mode:            USB interface

9: ARC Mode:                           non-contact ARC



SW-1325 Plasma cutting machine functions and applications.

1: The whole wedding thick square steel tube with artificial aging processing frame to ensure the machine strong, rigidity without any distortion.

2:Reasonable working table design , vertical finishing steel plate working table coved with finishing catering iron mask to protect the vertical steel plate.

3:Reasonable slope design to ensure the processed work piece and debris to slide to side of the slops, it is very safety and convenience.

4:Adopted with Japanese Panasonic motor servo driver and Taiwan made high-precision servo gear, rack and pinion to ensure low noise, steady and precision performance.

5: Adopted with US made control system with Germany auto-layout software.

6:Equipped with HYPERMAX power max series cutter machine and US original torch.

7:Applications : metal parts cutting, thick abnormal metal plate cutting and welding processing .
